Description

Attach this visual asset to a ChPhysicsItem (ex.a ChDomain) in order to provide an automatic visualization of Gauss material points and finite element nodes, as 3D glyps (arrows, dots, etc.).

If the visualization system supports glyphs, these will be rendered (ex. in Irrlicht 3d view, but also in Blender postprocessing etc. The system is modular and expandable, so that you can visualize properties such as stress, strain, speed, acceleration, temperature etc., by adding ChVisualDataExtractor objects to this visual asset.

#include <ChDrawer.h>

Inheritance diagram for chrono::fea::ChVisualDomainGlyphs:

[legend]

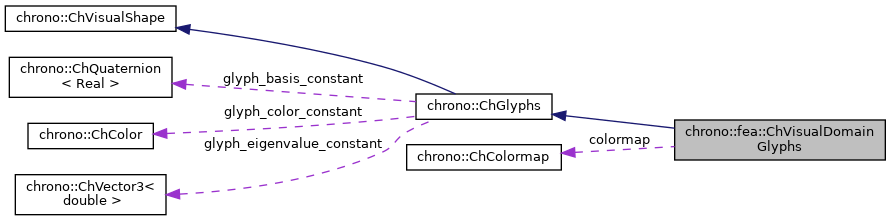

Collaboration diagram for chrono::fea::ChVisualDomainGlyphs:

[legend]

Public Member Functions
	ChVisualDomainGlyphs (std::shared_ptr< ChDomain > adomain)

void	AddPropertyExtractor (const ChVisualDataExtractorScalarBase &mextractor, double min=0, double max=1, std::string mname="Scalar")
	Attach scalar property extractor. More...

void	AddPropertyExtractor (const ChVisualDataExtractorVectorBase &mextractor, double min=0, double max=1, std::string mname="Vect")
	Attach vector property extractor. More...

void	AddPropertyExtractor (const ChVisualDataExtractorMatrix33Base &mextractor, double min=0, double max=1, std::string mname="Matr")
	Attach 3x3 matrix property extractor. More...

void	AddPositionExtractor (const ChVisualDataExtractorVectorBase &mextractor)

void	SetColormap (const ChColormap &mcmap)
	Set the colormap for rendering the property via falsecolor.

void	SetColormap (const ChColor &col)
	Set the color for rendering the glyphs as constant uniform color. More...

Public Member Functions inherited from chrono::ChGlyphs
eCh_GlyphType	GetDrawMode () const
	Get the way that glyphs must be rendered.

void	SetDrawMode (eCh_GlyphType mmode)
	Set the way that glyphs must be rendered. More...

void	Reserve (unsigned int n_glyphs)
	Resize the vectors of data so that memory management is faster than calling SetGlyphPoint() etc. More...

size_t	GetNumberOfGlyphs () const
	Get the number of glyphs.

double	GetGlyphsSize () const
	Get the 'size' (thickness of symbol, depending on the rendering system) of the glyph symbols.

void	SetGlyphsSize (double msize)
	Set the 'size' (thickness of symbol, depending on the rendering system) of the glyph symbols.

void	SetZbufferHide (bool mhide)

bool	GetZbufferHide () const

void	SetGlyphPoint (unsigned int id, ChVector3d mpoint, ChColor mcolor=ChColor(1, 0, 0))
	Fast method to set a glyph for GLYPH_POINT draw mode. More...

void	SetGlyphVector (unsigned int id, ChVector3d mpoint, ChVector3d mvector, ChColor mcolor=ChColor(1, 0, 0))
	Fast method to set a glyph for GLYPH_VECTOR draw mode. More...

void	SetGlyphVectorLocal (unsigned int id, ChVector3d mpoint, ChVector3d mvector, ChQuaternion<> mrot, ChColor mcolor=ChColor(1, 0, 0))
	Fast method to set a glyph for GLYPH_VECTOR draw mode, with each vectors set in its own local (rotated) basis If the id is more than the reserved amount of glyphs (see Reserve() ) the vectors are inflated.

void	SetGlyphCoordsys (unsigned int id, ChCoordsys<> mcoord)
	Fast method to set a glyph for GLYPH_COORDSYS draw mode. More...

void	SetGlyphTensor (unsigned int id, ChVector3d mpoint, ChQuaternion<> mbasis, ChVector3d eigenvalues)
	Fast method to set a glyph for GLYPH_TENSOR draw mode. More...

std::vector< ChProperty * >	getProperties ()
	Gets the current array of per-point properties, if any.

void	AddProperty (ChProperty &mprop)
	Add a property as an array of data per-point. More...

virtual void	ArchiveOut (ChArchiveOut &archive_out) override
	Method to allow serialization of transient data to archives.

virtual void	ArchiveIn (ChArchiveIn &archive_in) override
	Method to allow de-serialization of transient data from archives.

Public Member Functions inherited from chrono::ChVisualShape
void	SetVisible (bool mv)
	Set this visualization asset as visible.

bool	IsVisible () const
	Return true if the asset is set as visible.

void	SetColor (const ChColor &col)
	Set the diffuse color for this shape. More...

ChColor	GetColor () const
	Return the diffuse color of the first material in the list of materials for this shape. More...

void	SetOpacity (float val)
	Set opacity for this shape (0: fully transparent; 1: fully opaque). More...

float	GetOpacity () const
	Get opacity of the first material in the list of materials for this shape. More...

void	SetTexture (const std::string &filename, float scale_x=1, float scale_y=1)
	Set the diffuse texture map for this shape. More...

std::string	GetTexture () const
	Return the diffuse texture map of the first material in the list of materials for this shape. More...

void	SetMutable (bool val)
	Set this visualization shape as modifiable (default: false). More...

bool	IsMutable () const
	Return true if the visualization shape is marked as modifiable.

void	SetDoubleFaced (bool val)
	Set shape rendering as double-faced (default: false).

bool	IsDoubleFaced () const
	Return true if the visualization shape must be rendered double-faced.

int	AddMaterial (std::shared_ptr< ChVisualMaterial > material)
	Add a visualization material and return its index in the list of materials.

void	SetMaterial (int i, std::shared_ptr< ChVisualMaterial > material)
	Replace the material with specified index. More...

std::vector< std::shared_ptr< ChVisualMaterial > > &	GetMaterials ()
	Get the list of visualization materials.

std::shared_ptr< ChVisualMaterial >	GetMaterial (int i) const
	Get the specified material in the list.

unsigned int	GetNumMaterials () const
	Get the number of visualization materials.

virtual ChAABB	GetBoundingBox () const
	Get the shape bounding box. More...

Protected Member Functions
virtual void	Update (ChObj *updater, const ChFrame<> &frame) override
	This Update() is called automatically by the parent ChPhysicsItem all time that the system needs to update the visual assets. More...

Protected Attributes
std::shared_ptr< ChVisualDataExtractorVectorBase >	extractor_position

std::vector< std::pair< std::shared_ptr< ChVisualDataExtractorScalarBase >, ChPropertyScalar * > >	extractors_scalar_properties

std::vector< std::pair< std::shared_ptr< ChVisualDataExtractorVectorBase >, ChPropertyVector * > >	extractors_vector_properties

std::vector< std::pair< std::shared_ptr< ChVisualDataExtractorMatrix33Base >, std::pair< ChPropertyQuaternion , ChPropertyVector > > >	extractors_tensor_properties

std::shared_ptr< ChDomain >	mdomain

ChColormap	colormap

bool	use_colormap

int	i_scalar_prop_colorized

int	i_vector_prop_colorized

bool	draw_materialpoints

bool	draw_nodes

Protected Attributes inherited from chrono::ChVisualShape
bool	is_visible
	shape visibility flag

bool	is_mutable
	flag indicating whether the shape is rigid or deformable

bool	is_double_faced
	flag indicating that the shape should be rendered double-faced

std::vector< std::shared_ptr< ChVisualMaterial > >	material_list
	list of visualization materials

Additional Inherited Members
Public Types inherited from chrono::ChGlyphs
enum	eCh_GlyphType { GLYPH_POINT = 0, GLYPH_VECTOR, GLYPH_COORDSYS, GLYPH_TENSOR }

enum	eCh_GlyphLength { CONSTANT = 0, PROPERTY }
	Modes vector length, if GLYPH_VECTOR.

enum	eCh_GlyphWidth { CONSTANT = 0, PROPERTY }
	Modes for glyph width or size.

enum	eCh_GlyphBasis { CONSTANT = 0, PROPERTY }
	Modes for type of glyph rotation (for GLYPH_COORDSYS mode)

enum	eCh_GlyphEigenvalues { CONSTANT = 0, PROPERTY }
	Modes for type of glyph eigenvalues (for GLYPH_TENSOR mode)

enum	eCh_GlyphColor { CONSTANT = 0, PROPERTY }
	Modes for colorizing glyph.

Public Attributes inherited from chrono::ChGlyphs
std::vector< ChVector3d >	points

eCh_GlyphLength	glyph_length_type

std::string	glyph_length_prop

double	glyph_scalelenght

eCh_GlyphWidth	glyph_width_type

std::string	glyph_width_prop

double	glyph_scalewidth

eCh_GlyphBasis	glyph_basis_type

std::string	glyph_basis_prop

ChQuaternion	glyph_basis_constant

eCh_GlyphEigenvalues	glyph_eigenvalues_type

std::string	glyph_eigenvalues_prop

ChVector3d	glyph_eigenvalue_constant

eCh_GlyphColor	glyph_color_type

std::string	glyph_color_prop

ChColor	glyph_color_constant

double	glyph_colormap_startscale

double	glyph_colormap_endscale

bool	vector_tip

std::vector< ChProperty * >	m_properties

std::vector< ChColor > *	colors

std::vector< ChVector3d > *	vectors

std::vector< ChQuaternion< double > > *	rotations

std::vector< ChVector3d > *	eigenvalues

Member Function Documentation

◆ AddPropertyExtractor() [1/3]

void chrono::fea::ChVisualDomainGlyphs::AddPropertyExtractor	(	const ChVisualDataExtractorMatrix33Base &	mextractor,
		double	min = `0`,
		double	max = `1`,
		std::string	mname = `"Matr"`
	)

inline

Attach 3x3 matrix property extractor.

Also turns the glyph rendering into ChGlyph::GLYPH_TENSOR mode. If you added more than one property via AddPropertyExtractor(), by default the last one will be used for the falsecolor rendering.

◆ AddPropertyExtractor() [2/3]

void chrono::fea::ChVisualDomainGlyphs::AddPropertyExtractor	(	const ChVisualDataExtractorScalarBase &	mextractor,
		double	min = `0`,
		double	max = `1`,
		std::string	mname = `"Scalar"`
	)

inline

Attach scalar property extractor.

Also turns the glyph rendering into ChGlyph::GLYPH_POINT mode. If you added more than one property via AddPropertyExtractor(), by default the last one will be used for the falsecolor rendering.

◆ AddPropertyExtractor() [3/3]

void chrono::fea::ChVisualDomainGlyphs::AddPropertyExtractor	(	const ChVisualDataExtractorVectorBase &	mextractor,
		double	min = `0`,
		double	max = `1`,
		std::string	mname = `"Vect"`
	)

inline

Attach vector property extractor.

Also turns the glyph rendering into ChGlyph::GLYPH_POINT mode. If you added more than one property via AddPropertyExtractor(), by default the last one will be used for the falsecolor rendering.

◆ SetColormap()

void chrono::fea::ChVisualDomainGlyphs::SetColormap ( const ChColor & col )

inline

Set the color for rendering the glyphs as constant uniform color.

This disables the colormap falsecolor rendering.

◆ Update()

virtual void chrono::fea::ChVisualDomainGlyphs::Update	(	ChObj *	updater,
		const ChFrame<> &	frame
	)

inlineoverrideprotectedvirtual

This Update() is called automatically by the parent ChPhysicsItem all time that the system needs to update the visual assets.

The main task of this Update is to generate/update the lists of glyps (vectors, poionts, etc.) that represents the visualization of the nodes and material points of the domain.

Reimplemented from chrono::ChVisualShape.

The documentation for this class was generated from the following file:

/builds/uwsbel/chrono/src/chrono/fea/ChDrawer.h
