Description

Parser for YAML specification files for Chrono::TDPF models and simulations.

The parser caches model information and simulation settings from a YAML input file and then allows populating an FSI Chrono::TDPF system and setting solver and simulation parameters.

#include <ChParserTdpfYAML.h>

Inheritance diagram for chrono::parsers::ChParserTdpfYAML:

[legend]

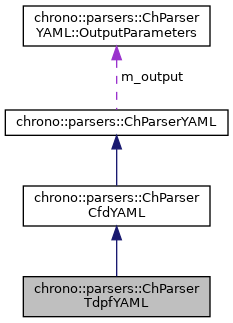

Collaboration diagram for chrono::parsers::ChParserTdpfYAML:

[legend]

Public Member Functions
	ChParserTdpfYAML (const std::string &yamlfilename, bool verbose=false)

bool	HasSolverData () const
	Return true if a YAML solver file has been loaded.

bool	HasModelData () const
	Return true if a YAML model file has been loaded.

void	LoadFile (const std::string &yaml_filename)
	Load the specified MBS simulation input YAML file.

void	LoadSimData (const YAML::Node &yaml) override
	Load the simulation, output, and visualization settings from the specified YAML node. More...

void	LoadModelData (const YAML::Node &yaml)
	Load the MBS model from the specified YAML node.

void	LoadSolverData (const YAML::Node &yaml)
	Load the solver parameters from the specified YAML node. More...

std::shared_ptr< fsi::tdpf::ChFsiSystemTDPF >	CreateFsiSystemTDPF (bool initialize=true)
	Create and return a Chrono FSI problem configured from cached model and simulation parameters. More...

virtual std::shared_ptr< fsi::ChFsiSystem >	GetFsiSystem () override
	Access the underlying FSI system.

virtual std::shared_ptr< fsi::ChFsiFluidSystem >	GetFluidSystem () override
	Access the underlying fluid system.

std::shared_ptr< fsi::tdpf::ChFsiFluidSystemTDPF >	GetFluidSystemTDPF ()
	Access the underlying fluid system.

virtual void	WriteOutput (int frame, double time) override
	Write simulation output results at the current time.

Public Member Functions inherited from chrono::parsers::ChParserCfdYAML
	ChParserCfdYAML (bool verbose=false)

FluidSystemType	GetType () const
	Return the fluid system type.

Public Member Functions inherited from chrono::parsers::ChParserYAML
void	SetVerbose (bool verbose)
	Set verbose terminal output (default: false).

virtual void	SetOutputDir (const std::string &out_dir)
	Set root output directory (default: "."). More...

const std::string &	GetName () const
	Return the name of the YAML model.

virtual bool	OutputEnabled () const
	Return true if generating output.

const ChOutput::Settings &	GetOutputSettings () const
	Return all output settings.

ChOutput::Format	GetOutputFormat () const
	Return the output type.

ChOutput::Mode	GetOutputMode () const
	Return the output mode.

virtual double	GetOutputFPS () const
	Return the output frequency.

virtual bool	VisualizationEnabled () const
	Return true if visualization is enabled.

const ChVisualSystem::Settings &	GetVisualizationSettings () const
	Return all visualization settings.

double	GetRenderFPS () const

CameraVerticalDir	GetCameraVerticalDir () const

const ChVector3d &	GetCameraLocation () const

const ChVector3d &	GetCameraTarget () const

bool	EnableShadows () const

bool	WriteImages () const

const std::string &	GetImageDir () const

virtual void	Output (double time)
	Generate output at the current frame. More...

virtual bool	Render (ChVisualSystem &vis, double time)
	Render the current frame using the specified visual system if run-time visualization is available and enabled. More...

Additional Inherited Members
Public Types inherited from chrono::parsers::ChParserCfdYAML
enum	FluidSystemType { SPH, TDPF }

Public Types inherited from chrono::parsers::ChParserYAML
enum	YamlFileType { MBS, SPH, TDPF, FSI, VEHICLE, CUSTOM }
	Type of a Chrono YAML specification file, as declared by its `type` key. More...

Static Public Member Functions inherited from chrono::parsers::ChParserCfdYAML
static FluidSystemType	ReadFluidSystemType (const std::string &yaml_filename)
	Peek in specified YAML file and read the fluid system type. More...

Static Public Member Functions inherited from chrono::parsers::ChParserYAML
static YamlFileType	ReadYamlFileType (const std::string &yaml_filename)
	Peek in the specified YAML file and read the declared file type. More...

Static Protected Member Functions inherited from chrono::parsers::ChParserYAML
static YamlFileType	ReadYamlFileType (const YAML::Node &a)
	Read the YAML file type from the given node. More...

Protected Attributes inherited from chrono::parsers::ChParserCfdYAML
FluidSystemType	m_type

Protected Attributes inherited from chrono::parsers::ChParserYAML
std::string	m_name
	name of the YAML model

bool	m_verbose
	verbose terminal output (default: false)

bool	m_use_degrees
	all angles given in degrees (default: true)

ChVisualSystem::Settings	m_vis_settings
	visualization settings

ChOutput::Settings	m_output_settings
	output settings

std::string	m_output_dir
	root output directory

std::shared_ptr< ChOutput >	m_output_db
	output database

ChYamlFileHandler	m_file_handler
	handler for data file paths

Member Function Documentation

◆ CreateFsiSystemTDPF()

std::shared_ptr< fsi::tdpf::ChFsiSystemTDPF > chrono::parsers::ChParserTdpfYAML::CreateFsiSystemTDPF ( bool initialize = true )

Create and return a Chrono FSI problem configured from cached model and simulation parameters.

By default, the Chrono FSI problem is initialized (with no associated MBS system). If a system is attached after creation, the caller must create the FSI problem with initialize=false, attach an MBS to the problem, and then explicitly initialize the FSI problem.

◆ LoadSimData()

void chrono::parsers::ChParserTdpfYAML::LoadSimData ( const YAML::Node & yaml )

overridevirtual

Load the simulation, output, and visualization settings from the specified YAML node.

The optional simulation object may specify gravity (default: [0, 0, -9.8]), the gravitational acceleration applied to the fluid phase. Note that in a coupled FSI simulation the gravity given in the FSI simulation file governs both phases and overrides this value; it therefore takes effect when the TDPF fluid system is driven on its own, as it is through the Chrono preCICE adapter.

Reimplemented from chrono::parsers::ChParserYAML.

◆ LoadSolverData()

void chrono::parsers::ChParserTdpfYAML::LoadSolverData ( const YAML::Node & yaml )

Load the solver parameters from the specified YAML node.

All sections and keys are optional; any that are absent keep the Chrono::FSI-TDPF defaults. The expected structure is:

radiation:
  method: RIRF_CONVOLUTION       # RIRF_CONVOLUTION (default) or STATE_SPACE
  truncation_time: 0             # [s] truncate the RIRF kernel; 0 = use the full kernel
  smoothing:                     # RIRF_CONVOLUTION only
    type: NONE                   # NONE (default), SG (Savitzky-Golay), or MOVING_AVERAGE
    window_length: 5             # forced to be odd and at least 3
  taper:                         # RIRF_CONVOLUTION only; presence of this block enables tapering
    enabled: true
    start_fraction: 0.8          # taper start, as a fraction of the RIRF length
    end_fraction: 1.0            # taper end, as a fraction of the RIRF length
    final_amplitude: 0.0         # kernel scale at the end of the taper (0 = zero, 1 = unchanged)
  state_space:                   # STATE_SPACE only
    max_order: 10
    r2_threshold: 0.95
    max_hankel_size: 200
    r2_num_samples: 50
  diagnostics:
    export_csv: false            # write before/after RIRF kernels
excitation:
  method: AUTO                   # AUTO (default), IRF_CONVOLUTION, or FREQUENCY_DOMAIN
  interpolation: CARTESIAN       # CARTESIAN (default) or POLAR
  truncation_time: 0             # [s] truncate the excitation IRF; 0 = use the full kernel
diagnostics:
  output_dir: ""                 # directory for solver diagnostics; empty = none

Enumeration values are read case-insensitively, so the SEA-Stack spellings (e.g. state_space, irf_convolution) are accepted as well.

The documentation for this class was generated from the following files:

/builds/uwsbel/chrono/src/chrono_parsers/yaml/ChParserTdpfYAML.h
/builds/uwsbel/chrono/src/chrono_parsers/yaml/ChParserTdpfYAML.cpp
