Description
Class for data structures for the per-node and per-materialpoint properties of some material, that contain some type of ChVariable that should be automatically integrated.
A child class of this type inherit an automatic bookkeeping of its ChVariable (ex. scattering and gathering for mapping to global vectors used by timesteppers is automatic).
#include <ChFieldData.h>
Public Member Functions | |
| virtual ChVectorRef | State ()=0 |
| virtual ChVectorRef | StateDt ()=0 |
| virtual ChVectorRef | Load ()=0 |
| Access the applied load term (ex. the atomic load/source in a Poisson equation). | |
| virtual ChVariables & | GetVariable ()=0 |
| Access the contained ChVariable. | |
| virtual void | SetFixed (bool fixed)=0 |
| Fix/release this state. More... | |
| virtual bool | IsFixed () const =0 |
| virtual unsigned int | GetNumCoordsPosLevel () |
| Get the number of degrees of freedom of this state. | |
| virtual unsigned int | GetNumCoordsVelLevel () |
| unsigned int | DataGetOffsetPosLevel () |
| unsigned int | DataGetOffsetVelLevel () |
| void | DataSetOffsetPosLevel (const unsigned int moff) |
| void | DataSetOffsetVelLevel (const unsigned int moff) |
| virtual void | DataIntStateGather (const unsigned int off_x, ChState &x, const unsigned int off_v, ChStateDelta &v, double &T) |
| virtual void | DataIntStateScatter (const unsigned int off_x, const ChState &x, const unsigned int off_v, const ChStateDelta &v, const double T) |
| virtual void | DataIntStateGatherAcceleration (const unsigned int off_a, ChStateDelta &a) |
| virtual void | DataIntStateScatterAcceleration (const unsigned int off_a, const ChStateDelta &a) |
| virtual void | DataIntStateIncrement (const unsigned int off_x, ChState &x_new, const ChState &x, const unsigned int off_v, const ChStateDelta &Dv) |
| virtual void | DataIntStateGetIncrement (const unsigned int off_x, const ChState &x_new, const ChState &x, const unsigned int off_v, ChStateDelta &Dv) |
| virtual void | DataIntLoadResidual_F (const unsigned int off, ChVectorDynamic<> &R, const double c) |
| virtual void | DataIntLoadResidual_Mv (const unsigned int off, ChVectorDynamic<> &R, const ChVectorDynamic<> &w, const double c) |
| virtual void | DataIntLoadLumpedMass_Md (const unsigned int off, ChVectorDynamic<> &Md, double &error, const double c) |
| virtual void | DataIntToDescriptor (const unsigned int off_v, const ChStateDelta &v, const ChVectorDynamic<> &R) |
| virtual void | DataIntFromDescriptor (const unsigned int off_v, ChStateDelta &v) |
| virtual void | InjectVariables (ChSystemDescriptor &descriptor) |
 Public Member Functions inherited from chrono::fea::ChFieldData | |
| virtual ChFieldData * | GetNthSubData (int n) |
| Optionally, a ChFieldData could have children ChFieldData objects, like a tree structure. More... | |
| template<typename VisitorFunc > | |
| void | VisitTree (VisitorFunc &&visitor) |
| template<typename VisitorFunc > | |
| void | ForEach (VisitorFunc &&visitor) |
Static Public Member Functions | |
| static bool | IsFirstOrder () |
| By default all ChFieldDataState are ment for 2nd order ODE, i.e. More... | |
| static unsigned int | StaticGetNumCoordsPosLevel () |
| static unsigned int | StaticGetNumCoordsVelLevel () |
Member Function Documentation
◆ IsFirstOrder()
|
inlinestatic |
By default all ChFieldDataState are ment for 2nd order ODE, i.e.
they have both state and state derivative, ex.{pos, dpos/dt}. In some cases, however, they might be used for 1st order ODE, ex for temperature T, in which case T is the StateDt() and State() is just a dummy variable to provide compatibility with 2nd order integrators of chrono.
◆ SetFixed()
|
pure virtual |
Fix/release this state.
If fixed, its state variables are not changed by the solver.

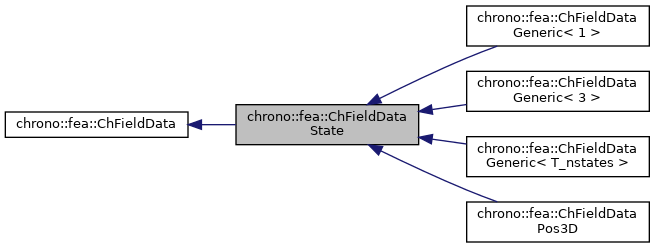

Implemented in chrono::fea::ChFieldDataPos3D, chrono::fea::ChFieldDataGeneric< T_nstates >, chrono::fea::ChFieldDataGeneric< 1 >, and chrono::fea::ChFieldDataGeneric< 3 >.
The documentation for this class was generated from the following file:
- /builds/uwsbel/chrono/src/chrono/fea/ChFieldData.h
