chrono::parsers::ChParserYAML Class Reference
PARSERS module

Description

Base class for all YAML parsers.

#include <ChParserYAML.h>

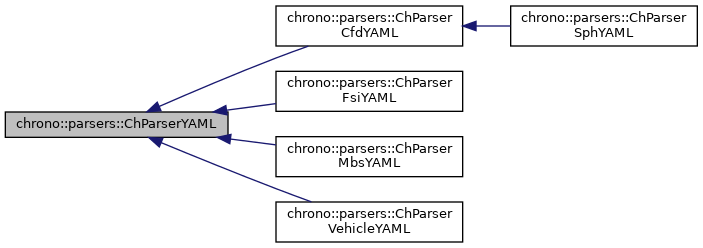

Inheritance diagram for chrono::parsers::ChParserYAML:
Inheritance graph
[legend]
Collaboration diagram for chrono::parsers::ChParserYAML:
Collaboration graph
[legend]

Public Types

enum  YamlFileType {
  MBS, SPH, TDPF, FSI,
  VEHICLE, UNKNOWN
}
 Type of a Chrono YAML specification file.


Public Member Functions

void SetVerbose (bool verbose)
 Set verbose terminal output (default: false).

virtual void SetOutputDir (const std::string &out_dir)
 Set root output directory (default: "."). More...

const std::string & GetName () const
 Return the name of the YAML model.

virtual bool OutputEnabled () const
 Return true if generating output.

const ChOutput::Settings & GetOutputSettings () const
 Return all output settings.

ChOutput::Format GetOutputFormat () const
 Return the output type.

ChOutput::Mode GetOutputMode () const
 Return the output mode.

virtual double GetOutputFPS () const
 Return the output frequency.

virtual bool VisualizationEnabled () const
 Return true if visualization is enabled.

const ChVisualSystem::Settings & GetVisualizationSettings () const
 Return all visualization settings.

double GetRenderFPS () const

CameraVerticalDir GetCameraVerticalDir () const

const ChVector3d & GetCameraLocation () const

const ChVector3d & GetCameraTarget () const

bool EnableShadows () const

bool WriteImages () const

const std::string & GetImageDir () const

virtual void LoadSimData (const YAML::Node &yaml)
 Load simulation settings for this parser from the specified YAML node. More...

virtual void WriteOutput (int frame, double time)
 Write simulation output results at the current time. More...

virtual void Output (double time)
 Generate output at the current frame. More...

virtual bool Render (ChVisualSystem &vis, double time)
 Render the current frame using the specified visual system if run-time visualization is available and enabled. More...


Static Public Member Functions

static YamlFileType ReadYamlFileType (const std::string &yaml_filename)
 Peek in specified YAML file and read the fluid system type. More...


Static Protected Member Functions

static YamlFileType ReadYamlFileType (const YAML::Node &a)
 Read the YAML file type.


Protected Attributes

std::string m_name
 name of the YAML model

bool m_verbose
 verbose terminal output (default: false)

bool m_use_degrees
 all angles given in degrees (default: true)

ChVisualSystem::Settings m_vis_settings
 visualization settings

ChOutput::Settings m_output_settings
 output settings

std::string m_output_dir
 root output directory

std::shared_ptr< ChOutput > m_output_db
 output database

ChYamlFileHandler m_file_handler
 handler for data file paths


Member Function Documentation

◆ LoadSimData()

void chrono::parsers::ChParserYAML::LoadSimData ( const YAML::Node &  yaml)
virtual

Load simulation settings for this parser from the specified YAML node.

This function reads settings common to all Chrono YAML parsers (run-time visualization and output). A derived class must also read any additional parser-specific simulation settings.

Reimplemented in chrono::parsers::ChParserMbsYAML, chrono::parsers::ChParserTdpfYAML, chrono::parsers::ChParserSphYAML, and chrono::parsers::ChParserFsiYAML.

◆ Output()

void chrono::parsers::ChParserYAML::Output ( double  time)
virtual

Generate output at the current frame.

This function ensures that output occurs at the specified frequency.

Reimplemented in chrono::parsers::ChParserFsiYAML.

◆ ReadYamlFileType()

ChParserYAML::YamlFileType chrono::parsers::ChParserYAML::ReadYamlFileType ( const std::string &  yaml_filename)
static

Peek in specified YAML file and read the fluid system type.

Throws a runtime error if the type is unknown.

◆ Render()

bool chrono::parsers::ChParserYAML::Render ( ChVisualSystem &  vis,
double  time
)
virtual

Render the current frame using the specified visual system if run-time visualization is available and enabled.

Returns false if the visual system must shut down. This function ensures that frames are rendered at the specified frequency. If requested, snapshots are saved to disk.

◆ SetOutputDir()

void chrono::parsers::ChParserYAML::SetOutputDir ( const std::string &  out_dir)
virtual

Set root output directory (default: ".").

The specified directory must exist.

Reimplemented in chrono::parsers::ChParserFsiYAML.

◆ WriteOutput()

void chrono::parsers::ChParserYAML::WriteOutput ( int  frame,
double  time
)
virtual

Write simulation output results at the current time.

This base class implementation creates and initializes the output database. Derived classes must

Reimplemented in chrono::parsers::ChParserMbsYAML, chrono::parsers::ChParserSphYAML, and chrono::parsers::ChParserTdpfYAML.

The documentation for this class was generated from the following files:
  • /builds/uwsbel/chrono/src/chrono_parsers/yaml/ChParserYAML.h
  • /builds/uwsbel/chrono/src/chrono_parsers/yaml/ChParserYAML.cpp
