Chrono::FSI-SPH Modified Cam Clay (MCC) Parameter Guide

Scope

This page is a practical guide for configuring the CRM MCC rheology in Chrono::FSI-SPH.

It focuses on:

  • physical intuition for each MCC parameter
  • exact API calls used in Chrono
  • code-level behavior of the return-mapping implementation
  • two calibration workflows:
    • classical geomechanics test-based identification
    • empirical Chrono calibration when only interaction tests are available

Primary references:

Model Sketch

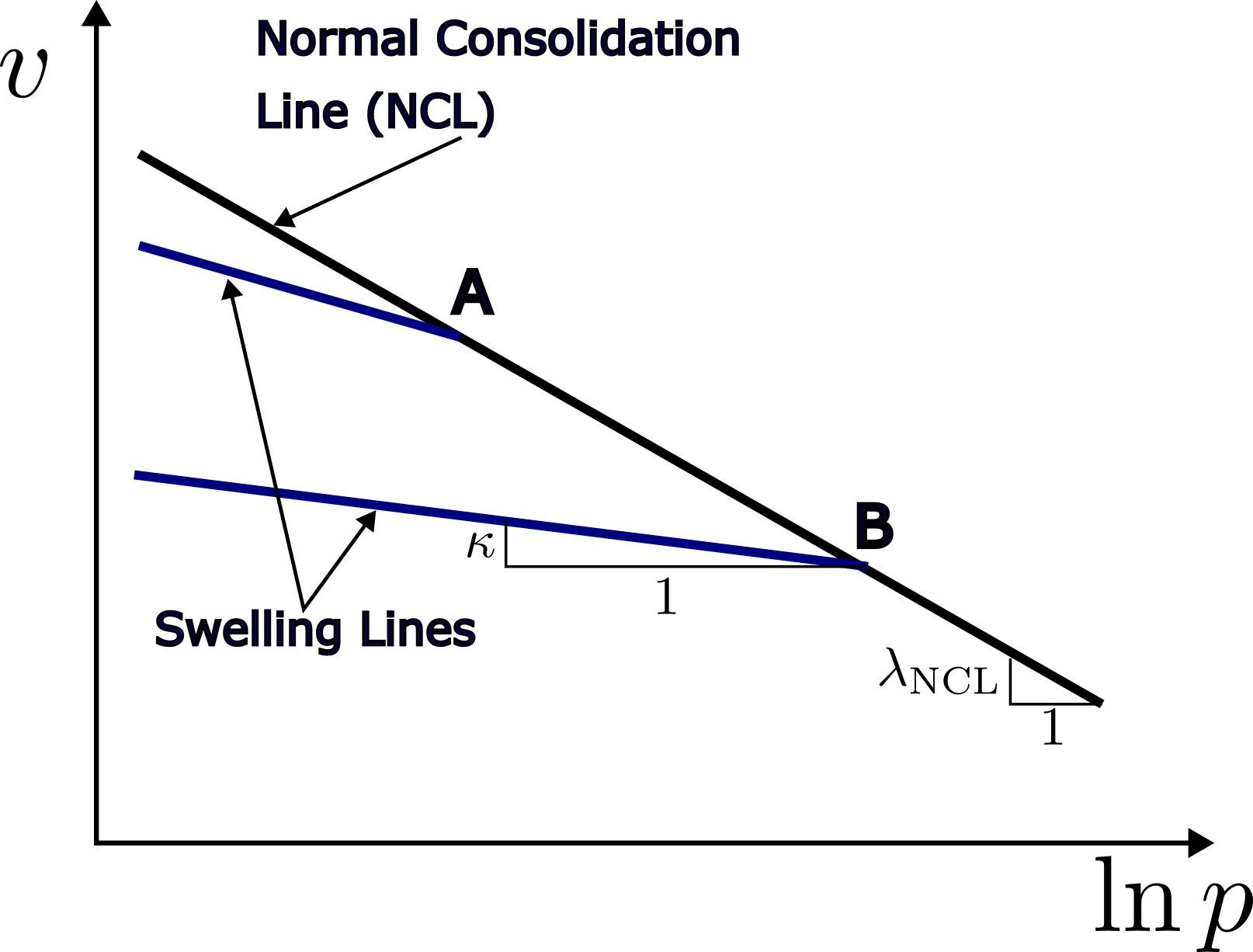

Normal consolidation and swelling behavior in v-ln(p) space.

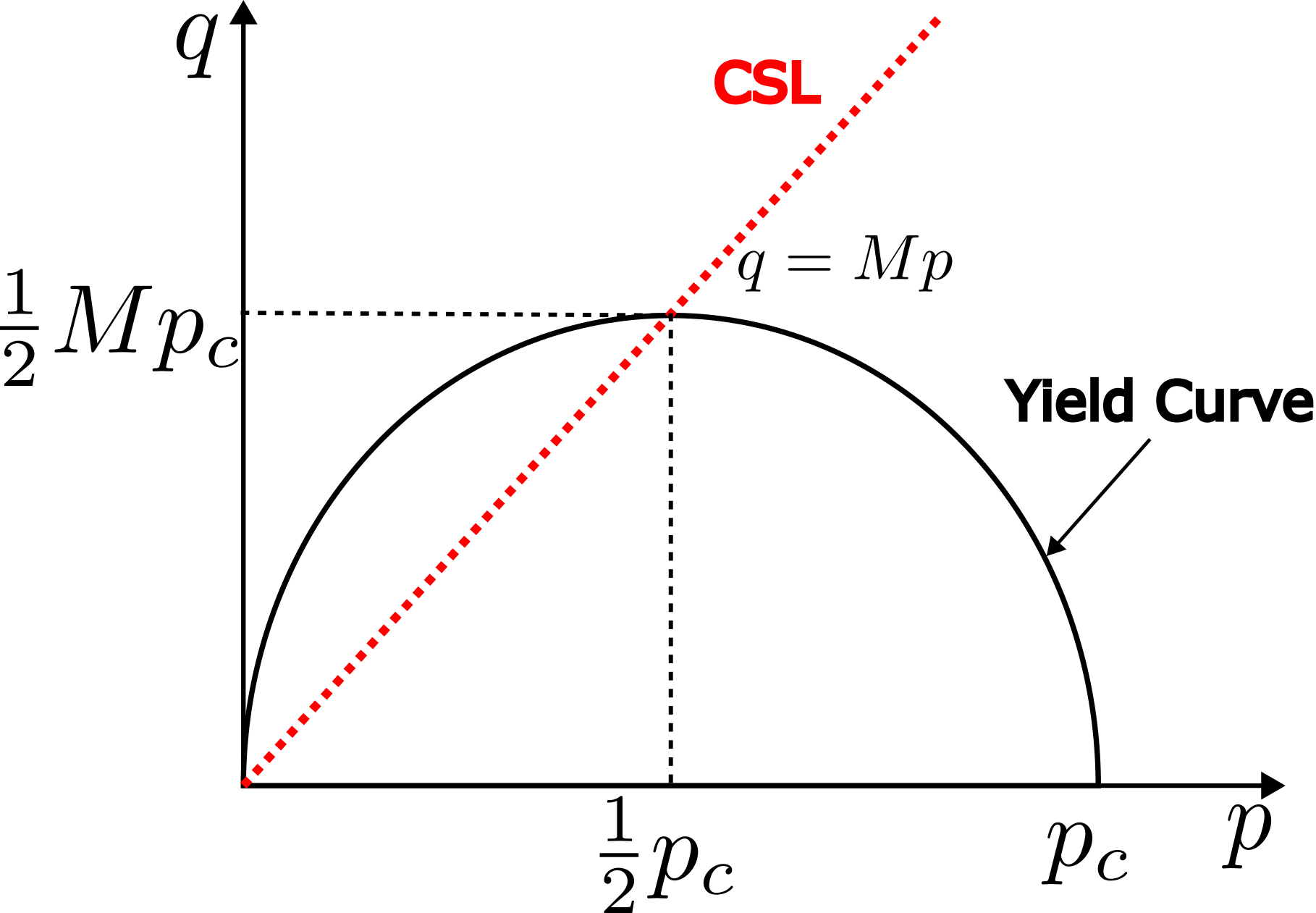

MCC elliptical yield surface in p-q space with CSL slope M and cap size p_c.

Quick Start

  1. Set rheology_model = RheologyCRM::MCC.
  2. Set all MCC constitutive parameters explicitly: mcc_M, mcc_kappa, mcc_lambda, mcc_v_lambda.
  3. Initialize per-particle preconsolidation pressure p_c0 (via pc in AddSPHParticle, or callback-based scaling).
  4. Reuse SPH solver settings from manual_fsi_sph_parameter_selection (especially artificial viscosity, shifting, free-surface handling, and time-step strategy).

API Map (How To Set MCC Parameters)

Constitutive parameters are set through ElasticMaterialProperties:

ChFsiFluidSystemSPH::ElasticMaterialProperties mat_props;
mat_props.rheology_model = RheologyCRM::MCC;
mat_props.density = 1700.0;
mat_props.Young_modulus = 1.0e6;
mat_props.Poisson_ratio = 0.3;
mat_props.mcc_M = 1.1; // CSL slope
mat_props.mcc_kappa = 0.02; // swelling/recompression slope
mat_props.mcc_lambda = 0.10; // NCL slope
mat_props.mcc_v_lambda = 2.0; // specific volume at p1 = 1000 Pa
sysSPH.SetElasticSPH(mat_props);

Important: p_c0 is not in ElasticMaterialProperties. It is per particle and passed through pc at particle creation:

// Explicit particle creation path
double p0 = rho0 * g * depth;
double pc0 = pre_pressure_scale * p0;
sysSPH.AddSPHParticle(pos, rho0, p0, mu0, v0, tau_diag, tau_offdiag, pc0);

If you use ChFsiProblemSPH with a properties callback:

class Props : public ChFsiProblemSPH::ParticlePropertiesCallback {
public:
void set(const ChFsiFluidSystemSPH& sysSPH, const ChVector3d& pos) override {
p0 = sysSPH.GetDensity() * std::abs(sysSPH.GetGravitationalAcceleration().z()) * (z0 - pos.z());
rho0 = sysSPH.GetDensity();
mu0 = sysSPH.GetViscosity();
v0 = VNULL;
pre_pressure_scale0 = 2.0; // ChFsiProblemSPH sets pc = p0 * pre_pressure_scale0
}
double z0;
};

Code-level note:

  • In ChFsiProblemSPH.cpp, pc is built as p0 * pre_pressure_scale0.
  • In direct AddSPHParticle, you provide pc explicitly.

MCC Math-to-Code Map

Chrono's MCC branch is implemented in TauEulerStep(...) (SphFluidDynamics.cu) and uses stress-rate terms from CrmRHS(...) (SphForceWCSPH.cu).

Concept Implementation detail
Trial stress sig_N_tr = sig_n + dt * deriv_sig in TauEulerStep(...)
Invariants p = -(1/3)tr(sigma), q = sqrt(3 J2)
Yield function f = q^2 + M^2 p (p - p_c)
Elastic moduli K = v p / kappa, G = 3K(1-2nu)/(2(1+nu)) (then clamped)
Plastic correction quadratic solve for delta_lambda, return to yield surface
Hardening p_c <- p_c * (1 + delta_eps_vp * v / (lambda - kappa)), with floor
Tension handling if trial/corrected p < 0, stress is zeroed
Free-surface handling stress and pressure zeroed for free-surface flagged particles

Current Chrono safeguards (important for interpretation):

  • K and G are clamped to [0.1, 1.0] of reference values derived from E and nu.
  • p_c has a hard floor (>= 100 Pa in current code).
  • Free-surface particles skip hardening updates and are stress-zeroed.
  • EOS is not used in CRM; pressure is obtained from stress (p = -(1/3)tr(sigma)).

Core MCC Parameters

Set these through ElasticMaterialProperties, plus per-particle pc.

Parameter Physical meaning Code default Practical recommendation API
mcc_M Critical state line slope (q = M p), controls shear strength at critical state. 0 Set from triaxial data or friction angle mapping. Typical terramechanics starts are about 0.8-1.4. mat_props.mcc_M -> SetElasticSPH
mcc_kappa Swelling/recompression slope in v-ln(p); controls elastic volumetric stiffness (K ~ v p / kappa). 0 Must be positive and usually smaller than lambda; increasing kappa softens elastic reload response. mat_props.mcc_kappa -> SetElasticSPH
mcc_lambda Normal consolidation slope in v-ln(p); controls virgin compressibility and hardening rate. 0 Must exceed kappa; larger lambda gives more compressible virgin response. mat_props.mcc_lambda -> SetElasticSPH
mcc_v_lambda Specific volume intercept at reference pressure p1 = 1000 Pa. 2.0 Set from isotropic compression line intercept in v-ln(p) space. mat_props.mcc_v_lambda -> SetElasticSPH
pc (per particle) Initial preconsolidation pressure p_c0; sets initial yield cap size / OCR effect. 1e3 in AddSPHParticle signature Set from OCR/test data or use depth-dependent p0 * pre_pressure_scale. This is highly influential in penetration/sinkage response. AddSPHParticle(..., pc) or callback pre_pressure_scale0
density Bulk density scale for inertia and pressure/stress coupling. 1000 Use measured bulk density for intended initial state. mat_props.density -> SetElasticSPH
Young_modulus, Poisson_ratio Reference elastic moduli used to compute K_bulk and G_shear and clamping bounds. 1e6, 0.3 Keep physically plausible; very large E can force smaller stable steps in explicit integration. mat_props.Young_modulus, mat_props.Poisson_ratio -> SetElasticSPH

Critical consistency checks:

  • mcc_kappa > 0
  • mcc_lambda > mcc_kappa (hardening denominator uses lambda-kappa)
  • mcc_M > 0
  • pc > 0 and initial p0 > 0 where NCL-based initialization is used

Naming note:

  • In current MCC equations in Chrono, kappa is used as the swelling/recompression slope and lambda as the NCL slope. This follows standard MCC notation used in the equations and implementation.

Traditional Parameter Selection (Physical Tests)

This is the standard CSSM/MCC workflow used in geomechanics (see Itasca reference above).

  1. Isotropic compression + unload/reload tests:
    • Fit v-ln(p) lines.
    • lambda = slope of normal consolidation line (NCL).
    • kappa = slope of swelling/recompression lines.
    • v_lambda = intercept at reference pressure p1 (Chrono uses p1 = 1000 Pa in initialization code).
  2. Triaxial tests to determine critical state slope:
    • M = q/p at critical state.
    • If only friction angle phi is available (triaxial compression convention), a common mapping is: M = 6 sin(phi) / (3 - sin(phi)).
    • Equivalent Itasca form: N_phi = (1 + sin(phi)) / (1 - sin(phi)), M = 3 (N_phi - 1) / (N_phi + 2).
  3. Initial cap size from stress history:
    • Set p_c0 from isotropic yield stress or OCR: p_c0 = OCR * p0.

Useful conversion if lab data is in void ratio:

  • v = 1 + e
  • if using compression/recompression indices from e-log10(p) data, typical conversions are: lambda = Cc / 2.303, kappa = Cr / 2.303

Empirical Chrono Calibration Workflow (When Lab Data Is Missing)

  1. Set M first from a target friction angle (or a prior material estimate).
  2. Set kappa, lambda, and p_c0 to match penetration/sinkage compliance and hardening trends.
  3. Use complementary tests (for example Cone Penetrometer Test + Normal Bevameter Plate Sinkage Test) to reduce parameter ambiguity.
  4. Keep SPH numerics fixed while tuning constitutive parameters (see manual_fsi_sph_parameter_selection).

Interpretation while tuning:

  • Increase lambda: softer virgin compression, larger settlement.
  • Increase kappa: softer elastic unload/reload response.
  • Decrease (lambda-kappa): faster p_c growth under plastic compaction (faster hardening).
  • Increase p_c0: larger initial elastic domain (stiffer early response).
  • Increase M: higher shear resistance for given mean pressure.

Current Defaults and Demo Ranges

Current constructor defaults for MCC-specific fields are:

  • mcc_M = 0
  • mcc_kappa = 0
  • mcc_lambda = 0
  • mcc_v_lambda = 2.0

These defaults are placeholders and are not physically usable for MCC without explicit user input.

Values seen in Chrono demos span a broad range depending on scenario scale:

  • mcc_kappa: about 0.01 up to 0.2
  • mcc_lambda: about 0.02 up to 1.0
  • M: often computed from a chosen friction coefficient/angle
  • pre_pressure_scale for p_c0: from about 2 (large-scale terrain) to much higher in penetration-focused setups

Hard-coded Specific-Volume Initializer (Current Code)

Chrono currently initializes specific volume (Sv) in FsiDataManager::AddSphParticle using:

  • Sv = v_lambda - lambda * ln(pc / p1) + kappa * ln(pc / confining_stress)
  • with hard-coded p1 = 1000 Pa
  • and confining_stress = pres (the particle's initial pressure)

Location:

  • src/chrono_fsi/sph/physics/SphDataManager.cu

Implications:

  • This initializer is always executed at particle insertion.
  • It assumes positive pc and positive pres (to avoid invalid logarithms).
  • If you initialize particles with near-zero pressure or leave pc at nonphysical values, MCC state initialization can be inconsistent.

Practical guidance:

  1. In MCC runs, initialize particles with physically meaningful p0 and pc0.
  2. Keep pc0 consistent with your intended OCR/state profile (depth-dependent if needed).
  3. Set mcc_v_lambda explicitly when you have v-ln(p) calibration data.

Common Failure Modes and First Fixes

  • Very soft early response: increase p_c0 and/or reduce lambda.
  • Overly stiff response with little plasticity: reduce p_c0, increase lambda, or reduce M.
  • Unstable volumetric behavior: verify lambda > kappa > 0, and reduce step size (or use variable time step).
  • Free-surface particles carrying unphysical stress: check free_surface_threshold and keep CRM free-surface handling enabled.
