Description

Class to construct a wavetank with a rigid piston or flap wavemaker mechanism.

The wavetank can include a beach for wave dissipation, by specifying a profile for the bottom.

#include <ChFsiProblemSPH.h>

Inheritance diagram for chrono::fsi::sph::ChFsiProblemWavetank:

[legend]

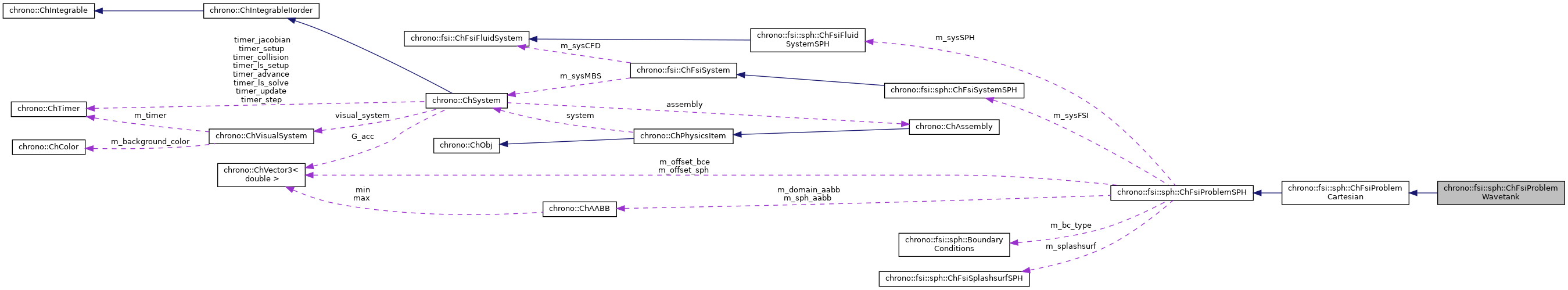

Collaboration diagram for chrono::fsi::sph::ChFsiProblemWavetank:

[legend]

Classes
class	Profile
	Interface for callback to specify wave tank profile. More...

Public Types
enum	WavemakerType { PISTON, FLAP }
	Wavemaker mechanism types.

Public Member Functions
	ChFsiProblemWavetank (double spacing, ChSystem *sys=nullptr)
	Create a ChFsiProblemSPH object. More...

void	SetProfile (std::shared_ptr< Profile > profile, bool end_wall)
	Set the callback for the bottom tank profile and indicate if an end-wall is constructed. More...

void	SetLateralPeriodicBC (bool periodic_BC)
	Use periodic boundary conditions in lateral direction (default: false). More...

std::shared_ptr< ChBody >	ConstructWaveTank (WavemakerType type, const ChVector3d &pos, const ChVector3d &box_size, double depth, std::shared_ptr< ChFunction > actuation)
	Add a wave tank with a rigid-body wavemaker (piston-type or flap-type). More...

virtual void	Initialize () override
	Complete construction of the FSI problem and initialize the FSI system. More...

Public Member Functions inherited from chrono::fsi::sph::ChFsiProblemCartesian
	ChFsiProblemCartesian (double spacing, ChSystem *sys=nullptr)
	Create a ChFsiProblemSPH object. More...

void	Construct (const std::string &sph_file, const std::string &bce_file, const ChVector3d &pos)
	Construct using information from the specified files. More...

void	Construct (const ChVector3d &box_size, const ChVector3d &pos, int side_flags)
	Construct SPH particles and optionally BCE markers in a box of given dimensions. More...

void	Construct (const std::string &heightmap_file, double length, double width, const ChVector2d &height_range, double depth, bool uniform_depth, const ChVector3d &pos, int side_flags)
	Construct SPH particles and optionally BCE markers from a given heightmap. More...

size_t	AddBoxContainer (const ChVector3d &box_size, const ChVector3d &pos, int side_flags)
	Add fixed BCE markers, representing a container for the computational domain. More...

Public Member Functions inherited from chrono::fsi::sph::ChFsiProblemSPH
void	SetVerbose (bool verbose)
	Enable verbose output during construction of ChFsiProblemSPH (default: false).

void	AttachMultibodySystem (ChSystem *sys)
	Attach Chrono MBS system.

std::shared_ptr< ChFsiSystemSPH >	GetFsiSystemSPH ()
	Access the underlying FSI system.

std::shared_ptr< ChFsiFluidSystemSPH >	GetFluidSystemSPH ()
	Access the underlying SPH system.

ChSystem &	GetMultibodySystem ()
	Access the underlying MBS system.

void	SetCfdSPH (const ChFsiFluidSystemSPH::FluidProperties &fluid_props)
	Enable solution of a CFD problem.

void	SetElasticSPH (const ChFsiFluidSystemSPH::ElasticMaterialProperties &mat_props)
	Enable solution of elastic SPH (for continuum representation of granular dynamics). More...

void	SetSPHParameters (const ChFsiFluidSystemSPH::SPHParameters &sph_params)
	Set SPH method parameters.

void	SetSplashsurfParameters (const ChFsiFluidSystemSPH::SplashsurfParameters &params)
	Set surface reconstruction parameters (`with splashsurf`).

void	AddRigidBody (std::shared_ptr< ChBody > body, std::shared_ptr< utils::ChBodyGeometry > geometry, bool check_embedded, bool use_grid_bce=false)
	Add a rigid body to the FSI problem. More...

void	AddRigidBodySphere (std::shared_ptr< ChBody > body, const ChVector3d &pos, double radius, bool use_grid_bce=false)

void	AddRigidBodyBox (std::shared_ptr< ChBody > body, const ChFramed &pos, const ChVector3d &size)

void	AddRigidBodyCylinderX (std::shared_ptr< ChBody > body, const ChFramed &pos, double radius, double length, bool use_grid_bce=false)

void	AddRigidBodyMesh (std::shared_ptr< ChBody > body, const ChFramed &pos, const std::string &obj_file, const ChVector3d &interior_point, double scale)

size_t	GetNumBCE (std::shared_ptr< ChBody > body) const
	Return the number of BCE markers associated with the specified rigid body.

void	UseNodeDirections (NodeDirectionsMode mode)
	Enable use and set method of obtaining FEA node directions for generating FEA BCE marker location. More...

void	SetBcePattern1D (BcePatternMesh1D pattern, bool remove_center=false)
	Set the BCE marker pattern for 1D flexible solids for subsequent calls to AddFeaMesh. More...

void	SetBcePattern2D (BcePatternMesh2D pattern, bool remove_center=false)
	Set the BCE marker pattern for 2D flexible solids for subsequent calls to AddFeaMesh. More...

void	AddFeaMesh (std::shared_ptr< fea::ChMesh > mesh, bool check_embedded)
	Add an FEA mesh to the FSI problem. More...

void	RegisterParticlePropertiesCallback (std::shared_ptr< ParticlePropertiesCallback > callback)
	Register a callback for setting SPH particle initial properties.

void	SetGravitationalAcceleration (const ChVector3d &gravity)
	Set gravitational acceleration for both multibody and fluid systems.

void	SetStepSizeCFD (double step)
	Set integration step size for fluid dynamics.

void	SetStepsizeMBD (double step)
	Set integration step size for multibody dynamics. More...

void	SetComputationalDomain (const ChAABB &aabb, BoundaryConditions bc_type={BCType::NONE, BCType::NONE, BCType::NONE})
	Explicitly set the computational domain limits. More...

void	PrintStats () const
	Print the FSI statistics.

void	PrintTimeSteps (const std::string &path) const

void	DoStepDynamics (double step)
	Advance the dynamics of the underlying FSI system by the specified step.

std::shared_ptr< ChBody >	GetGroundBody () const
	Get the ground body.

size_t	GetNumSPHParticles () const
	Get number of SPH particles.

size_t	GetNumBoundaryBCEMarkers () const
	Get number of boundary BCE markers.

const ChAABB &	GetComputationalDomain () const
	Get limits of computational domain.

const BoundaryConditions &	GetBoundaryConditionTypes () const
	Get the boundary condition type for the three sides of the computational domain.

const ChAABB &	GetSPHBoundingBox () const
	Get limits of SPH volume.

const ChVector3d &	GetFsiBodyForce (std::shared_ptr< ChBody > body) const
	Return the FSI applied force on the specified body (as returned by AddRigidBody). More...

const ChVector3d &	GetFsiBodyTorque (std::shared_ptr< ChBody > body) const
	Return the FSI applied torque on on the specified body (as returned by AddRigidBody). More...

double	GetRtfCFD () const
	Get current estimated RTF (real time factor) for the fluid system.

double	GetRtfMBD () const
	Get current estimated RTF (real time factor) for the multibody system.

void	SetOutputLevel (OutputLevel output_level)
	Set SPH simulation data output level (default: STATE_PRESSURE). More...

void	SaveOutputData (double time, const std::string &sph_dir, const std::string &fsi_dir)
	Save current SPH and solid data to files. More...

void	SaveInitialMarkers (const std::string &out_dir) const
	Save the set of initial SPH and BCE grid locations to files in the specified output directory.

void	WriteReconstructedSurface (const std::string &dir, const std::string &name, bool quiet=false)
	Reconstruct surface from the current SPH particle data cloud. More...

PhysicsProblem	GetPhysicsProblem () const

std::string	GetPhysicsProblemString () const

std::string	GetSphIntegrationSchemeString () const

Additional Inherited Members
Protected Types inherited from chrono::fsi::sph::ChFsiProblemSPH
typedef std::unordered_set< ChVector3i, CoordHash >	GridPoints
	Grid points with integer coordinates.

Protected Member Functions inherited from chrono::fsi::sph::ChFsiProblemSPH
	ChFsiProblemSPH (double spacing, ChSystem *sys=nullptr)
	Create a ChFsiProblemSPH object. More...

void	ProcessBody (ChFsiFluidSystemSPH::FsiSphBody &b)
	Prune SPH markers that are inside the solid body volume. More...

int	ProcessBodyMesh (ChFsiFluidSystemSPH::FsiSphBody &b, ChTriangleMeshConnected trimesh, const ChVector3d &interior_point)
	Prune SPH markers that are inside a body mesh volume. More...

void	ProcessFeaMesh1D (ChFsiFluidSystemSPH::FsiSphMesh1D &m)
	Prune SPH markers that overlap with the FEA mesh BCE markers.

void	ProcessFeaMesh2D (ChFsiFluidSystemSPH::FsiSphMesh2D &m)
	Prune SPH markers that overlap with the FEA mesh BCE markers.

void	CreateParticleRelocator ()

void	BCEShift (const ChVector3d &shift_dist)

void	SPHShift (const ChVector3d &shift_dist)

void	SPHMoveAABB2AABB (const ChAABB &aabb_src, const ChIntAABB &aabb_dest)

void	ForceProximitySearch ()

Protected Attributes inherited from chrono::fsi::sph::ChFsiProblemSPH
std::shared_ptr< ChFsiFluidSystemSPH >	m_sysSPH
	underlying Chrono SPH system

std::shared_ptr< ChFsiSystemSPH >	m_sysFSI
	underlying Chrono FSI system

ChSystem *	m_sysMBS
	associated MBS system

std::shared_ptr< ChFsiSplashsurfSPH >	m_splashsurf
	surface reconstructor

double	m_spacing
	particle and marker spacing

std::shared_ptr< ChBody >	m_ground
	ground body

GridPoints	m_sph
	SPH particle grid locations.

GridPoints	m_bce
	boundary BCE marker grid locations

ChVector3d	m_offset_sph
	SPH particles offset.

ChVector3d	m_offset_bce
	boundary BCE particles offset

ChAABB	m_domain_aabb
	computational domain bounding box

BoundaryConditions	m_bc_type
	boundary conditions in each direction

ChAABB	m_sph_aabb
	SPH volume bounding box.

std::unordered_map< std::shared_ptr< ChBody >, size_t >	m_fsi_bodies
	map from ChBody pointer to index in FSI body list

std::shared_ptr< ParticlePropertiesCallback >	m_props_cb
	callback for particle properties

std::unique_ptr< SphParticleRelocator >	m_relocator

bool	m_verbose
	if true, write information to standard output

bool	m_initialized
	if true, problem was initialized

Constructor & Destructor Documentation

◆ ChFsiProblemWavetank()

chrono::fsi::sph::ChFsiProblemWavetank::ChFsiProblemWavetank	(	double	spacing,
		ChSystem *	sys = `nullptr`
	)

Create a ChFsiProblemSPH object.

No SPH parameters are set.

Member Function Documentation

◆ ConstructWaveTank()

std::shared_ptr< ChBody > chrono::fsi::sph::ChFsiProblemWavetank::ConstructWaveTank	(	WavemakerType	type,
		const ChVector3d &	pos,
		const ChVector3d &	box_size,
		double	depth,
		std::shared_ptr< ChFunction >	actuation
	)

Add a wave tank with a rigid-body wavemaker (piston-type or flap-type).

Parameters

type	wave generator type
pos	reference position
box_size	box dimensions
depth	fluid depth
actuation	actuation function

◆ Initialize()

void chrono::fsi::sph::ChFsiProblemWavetank::Initialize ( )

overridevirtual

Complete construction of the FSI problem and initialize the FSI system.

After this call, no additional solid bodies should be added to the FSI problem.

Reimplemented from chrono::fsi::sph::ChFsiProblemSPH.

◆ SetLateralPeriodicBC()

void chrono::fsi::sph::ChFsiProblemWavetank::SetLateralPeriodicBC ( bool periodic_BC )

inline

Use periodic boundary conditions in lateral direction (default: false).

If not set, side boundary conditions are enforced by constructing lateral walls.

◆ SetProfile()

void chrono::fsi::sph::ChFsiProblemWavetank::SetProfile	(	std::shared_ptr< Profile >	profile,
		bool	end_wall
	)

Set the callback for the bottom tank profile and indicate if an end-wall is constructed.

By default, a tank with flat bottom and with end-wall is constructed

The documentation for this class was generated from the following files:

/builds/uwsbel/chrono/src/chrono_fsi/sph/ChFsiProblemSPH.h
/builds/uwsbel/chrono/src/chrono_fsi/sph/ChFsiProblemSPH.cpp
