chrono::fea::ChFieldElementVolume Class Referenceabstract
Description
Class for grouping all finite elements that have a manifold dimension of 3, like volumes (tetrahedrons, hexahedrons, etc.)
#include <ChFieldElement.h>

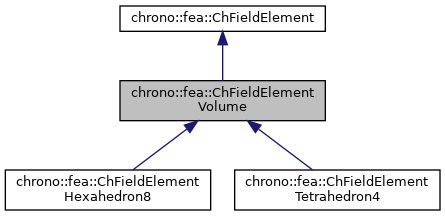

Inheritance diagram for chrono::fea::ChFieldElementVolume:
Collaboration diagram for chrono::fea::ChFieldElementVolume:
Public Member Functions | |
| virtual int | GetManifoldDimensions () const override |
| virtual double | ComputeJ (const ChVector3d eta, ChMatrix33d &J) override |
| Compute Jacobian J = dX/dη, and returns its determinant. More... | |
| virtual int | GetNumFaces () |
| virtual std::shared_ptr< ChFieldElementSurface > | BuildFace (int i_face, std::shared_ptr< ChFieldElementVolume > shared_this) |
| virtual bool | IsTetrahedronIntegrationCompatible () const =0 |
| virtual bool | IsTrianglePrismIntegrationCompatible () const =0 |
 Public Member Functions inherited from chrono::fea::ChFieldElement | |
| virtual unsigned int | GetNumNodes ()=0 |
| Get the number of nodes used by this element. | |
| virtual std::shared_ptr< ChNodeFEAbase > | GetNode (unsigned int n)=0 |
| Access the nth node. | |
| virtual int | GetSpatialDimensions () const =0 |
| virtual void | ComputeN (const ChVector3d eta, ChRowVectorDynamic<> &N)=0 |
| virtual void | ComputedNde (const ChVector3d eta, ChMatrixDynamic<> &dNde)=0 |
| virtual void | ComputedNdX (const ChVector3d eta, ChMatrixDynamic<> &dNdX) |
| virtual double | ComputeJinv (const ChVector3d eta, ChMatrix33d &Jinv) |
| virtual int | GetQuadratureOrder () const |
| virtual void | SetQuadratureOrder (const int morder) |
| virtual int | GetNumQuadraturePointsForOrder (const int order) const =0 |
| virtual int | GetNumMaterialPoints () const |
| virtual void | GetMaterialPointWeight (const int order, const int i, double &weight, ChVector3d &coords) const =0 |
| virtual void | Update () |
| Update, called at least at each time step. More... | |
| virtual void | SetupInitial (ChSystem *system) |
| Initial setup (called once before start of simulation). More... | |
Additional Inherited Members | |
| Protected Attributes inherited from chrono::fea::ChFieldElement | |
| int | quadrature_order = 1 |
Member Function Documentation
◆ ComputeJ()
|
overridevirtual |
Compute Jacobian J = dX/dη, and returns its determinant.
Compute Jacobian J = dX/deta, and returns its determinant.
FALLBACK default implementation; but if possible implement a faster ad hoc computation.
Implements chrono::fea::ChFieldElement.
Reimplemented in chrono::fea::ChFieldElementTetrahedron4, and chrono::fea::ChFieldElementHexahedron8.
The documentation for this class was generated from the following files:
- /builds/uwsbel/chrono/src/chrono/fea/ChFieldElement.h
- /builds/uwsbel/chrono/src/chrono/fea/ChFieldElement.cpp
