Description

Auxiliary scratch data stored per each material point during the ChDomainThermoDeformation computation.

This can be plotted in postprocessing, etc.

#include <ChDomainThermoDeformation.h>

Inheritance diagram for chrono::fea::ChFieldDataAuxiliaryThermoDeformation:

[legend]

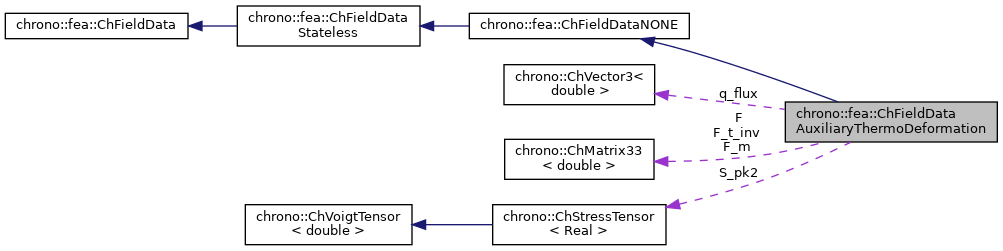

Collaboration diagram for chrono::fea::ChFieldDataAuxiliaryThermoDeformation:

[legend]

Public Attributes
ChMatrix33d	F

ChMatrix33d	F_t_inv
	total deformation gradient tensor F = F_m * F_t

ChMatrix33d	F_m
	thermal deformation gradient tensor, inverse

ChVector3d	q_flux
	mechanical deformation gradient tensor

ChStressTensor	S_pk2
	heat flux

Additional Inherited Members
Public Member Functions inherited from chrono::fea::ChFieldData
virtual ChFieldData *	GetNthSubData (int n)
	Optionally, a ChFieldData could have children ChFieldData objects, like a tree structure. More...

template<typename VisitorFunc >
void	VisitTree (VisitorFunc &&visitor)

template<typename VisitorFunc >
void	ForEach (VisitorFunc &&visitor)

The documentation for this class was generated from the following file:
