chrono::fea::ChFieldDataAuxiliaryDeformation Class Reference

Description

Auxiliary data stored per each material point during the ChDomainDeformation computation.

This can be plotted in postprocessing, etc. If you need to append additional data per each matpoint, do not modify this, just define your class with custom data and use it in my_material_class::T_per_materialpoint

#include <ChDomainDeformation.h>

Inheritance diagram for chrono::fea::ChFieldDataAuxiliaryDeformation:

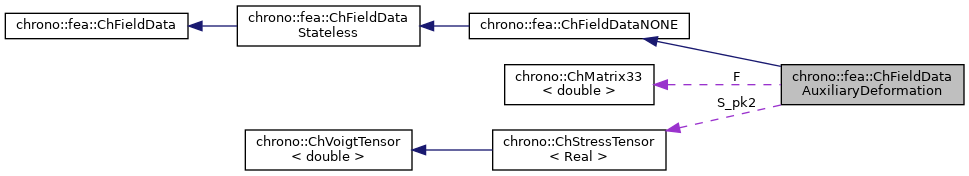

Collaboration diagram for chrono::fea::ChFieldDataAuxiliaryDeformation:

Public Attributes
ChMatrix33d	F
ChStressTensor	S_pk2
	deformation gradient tensor - can be used to plot Green-Lagrange etc.

Additional Inherited Members
Public Member Functions inherited from chrono::fea::ChFieldData
virtual ChFieldData *	GetNthSubData (int n)
	Optionally, a ChFieldData could have children ChFieldData objects, like a tree structure. More...
template<typename VisitorFunc >
void	VisitTree (VisitorFunc &&visitor)
template<typename VisitorFunc >
void	ForEach (VisitorFunc &&visitor)

---

The documentation for this class was generated from the following file:

• /builds/uwsbel/chrono/src/chrono/fea/ChDomainDeformation.h
