Description

Class for a Gauss point, that has a position (1D-3D) and a weight.

It also contains the strain and the stress tensor.

#include <ChGaussPoint.h>

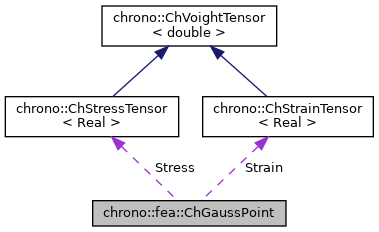

Collaboration diagram for chrono::fea::ChGaussPoint:

[legend]

Public Member Functions
	ChGaussPoint (int number, ChVector3d *coord, double weight)
	Create a Gauss point with given number, coordinates and weight.

ChVector3d	GetLocalCoordinates () const
	Return local coordinates.

void	SetLocalCoordinates (const ChVector3d &c)

ChVector3d	GetCoordinates () const
	Return absolute coordinates.

void	SetCoordinates (const ChVector3d &c)
	Set absolute coordinates.

double	GetWeight () const
	Return integration weight of receiver.

void	SetWeight (double w)

int	GetNumber () const
	Return number of the point.

Public Attributes
ChMatrixDynamic *	MatrB
	Matrix of partial derivatives: to obtain strain & stress.

ChStrainTensor	Strain
	Strain tensor.

ChStressTensor	Stress
	Stress tensor.

The documentation for this class was generated from the following files:
