chrono::fsi::sph::SphForceWCSPH Class Reference
Description
Inter-particle force calculation for explicit SPH schemes.
Inheritance diagram for chrono::fsi::sph::SphForceWCSPH:

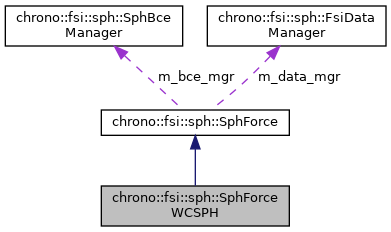

Collaboration diagram for chrono::fsi::sph::SphForceWCSPH:
Public Member Functions | |
| SphForceWCSPH (FsiDataManager &data_mgr, SphBceManager &bce_mgr, bool verbose, bool check_errors) | |
| Force class implemented using WCSPH with an explicit integrator. More... | |
| void | Initialize () override |
| Synchronize the copy of the data (parameters and number of objects) between device (GPU) and host (CPU). More... | |
 Public Member Functions inherited from chrono::fsi::sph::SphForce | |
| SphForce (FsiDataManager &data_mgr, SphBceManager &bce_mgr, bool verbose) | |
| Base constructor for the SphForce class. More... | |
| virtual | ~SphForce () |
| Destructor of the SphForce. | |
| void | SetLinearSolver (SolverType type) |
| Function to set the linear solver type for the solver implemented using the ISPH method (SphForceISPH). | |
Additional Inherited Members | |
| Static Public Member Functions inherited from chrono::fsi::sph::SphForce | |
| static void | CopySortedToOriginal_Invasive_R3 (thrust::device_vector< Real3 > &original, thrust::device_vector< Real3 > &sorted, const thrust::device_vector< uint > &gridMarkerIndex) |
| Copy sorted data into original data (real3). More... | |
| static void | CopySortedToOriginal_NonInvasive_R3 (thrust::device_vector< Real3 > &original, const thrust::device_vector< Real3 > &sorted, const thrust::device_vector< uint > &gridMarkerIndex) |
| Copy sorted data into original data (real3). More... | |
| static void | CopySortedToOriginal_Invasive_R4 (thrust::device_vector< Real4 > &original, thrust::device_vector< Real4 > &sorted, const thrust::device_vector< uint > &gridMarkerIndex) |
| Copy sorted data into original data (real4). More... | |
| static void | CopySortedToOriginal_NonInvasive_R4 (thrust::device_vector< Real4 > &original, thrust::device_vector< Real4 > &sorted, const thrust::device_vector< uint > &gridMarkerIndex) |
| Copy sorted data into original data (real4). More... | |
| Protected Attributes inherited from chrono::fsi::sph::SphForce | |
| FsiDataManager & | m_data_mgr |
| FSI data manager. | |
| SphBceManager & | m_bce_mgr |
| BCE manager. | |
| bool | m_verbose |
| bool * | m_errflagD |
Constructor & Destructor Documentation
◆ SphForceWCSPH()
| chrono::fsi::sph::SphForceWCSPH::SphForceWCSPH | ( | FsiDataManager & | data_mgr, |
| SphBceManager & | bce_mgr, | ||
| bool | verbose, | ||
| bool | check_errors | ||
| ) |
Force class implemented using WCSPH with an explicit integrator.
Supports for both fluid and granular material dynamics.
- Parameters
-
data_mgr FSI data manager bce_mgr BCE manager verbose verbose output check_errors check errors
Member Function Documentation
◆ Initialize()
|
overridevirtual |
Synchronize the copy of the data (parameters and number of objects) between device (GPU) and host (CPU).
This function needs to be called once the host data are modified.
Reimplemented from chrono::fsi::sph::SphForce.
The documentation for this class was generated from the following file:
- /builds/uwsbel/chrono/src/chrono_fsi/sph/physics/SphForceWCSPH.cuh
