chrono::vehicle::hmmwv::HMMWV_WheelLeft Class Reference

Description

HMMWV left wheel (front or rear).

#include <HMMWV_Wheel.h>

Inheritance diagram for chrono::vehicle::hmmwv::HMMWV_WheelLeft:

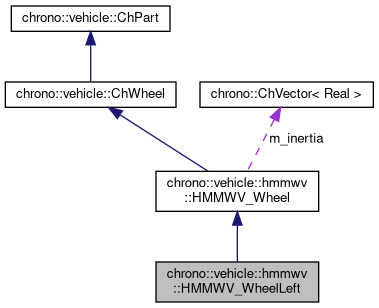

Collaboration diagram for chrono::vehicle::hmmwv::HMMWV_WheelLeft:

Public Member Functions

 HMMWV_WheelLeft (const std::string &name)

virtual std::string GetMeshName () const override

virtual std::string GetMeshFile () const override

- Public Member Functions inherited from chrono::vehicle::hmmwv::HMMWV_Wheel
 HMMWV_Wheel (const std::string &name)

virtual double GetMass () const override
 Get the wheel mass.

virtual ChVector GetInertia () const override
 Get the wheel moments of inertia.

virtual double GetRadius () const override
 Get the wheel radius (for visualization only).

virtual double GetWidth () const override
 Get the wheel width (for visualization only).

virtual void AddVisualizationAssets (VisualizationType vis) override
 Add visualization assets for the wheel subsystem. More...

virtual void RemoveVisualizationAssets () override
 Remove visualization assets for the wheel subsystem.

- Public Member Functions inherited from chrono::vehicle::ChWheel
 ChWheel (const std::string &name)

virtual std::string GetTemplateName () const override
 Get the name of the vehicle subsystem template.

virtual void Initialize (std::shared_ptr< ChBody > spindle, VehicleSide side, double offset=0)
 Initialize this wheel subsystem by associating it to an existing spindle of a suspension subsystem. More...

void Synchronize ()
 Synchronize the wheel subsystem. More...

std::shared_ptr< ChTireGetTire () const
 Get the tire attached to this wheel.

void SetTire (std::shared_ptr< ChTire > tire)
 Associate the given tire with this wheel.

std::shared_ptr< ChBodyGetSpindle () const
 Get the associated spindle body.

VehicleSide GetSide () const
 Get the vehicle side on which this wheel is mounted.

ChVector GetPos () const
 Get wheel position (expressed in absolute frame).

WheelState GetState () const
 Get the current state for this wheel. More...

- Public Member Functions inherited from chrono::vehicle::ChPart
 ChPart (const std::string &name)
 Construct a vehicle subsystem with the specified name. More...

const std::string & GetName () const
 Get the name identifier for this subsystem.

void SetName (const std::string &name)
 Set the name identifier for this subsystem.

void SetVisualizationType (VisualizationType vis)
 Set the visualization mode for this subsystem.

void SetContactFrictionCoefficient (float friction_coefficient)
 Set coefficient of friction. More...

void SetContactRestitutionCoefficient (float restitution_coefficient)
 Set coefficient of restitution. More...

void SetContactMaterialProperties (float young_modulus, float poisson_ratio)
 Set contact material properties. More...

void SetContactMaterialCoefficients (float kn, float gn, float kt, float gt)
 Set contact material coefficients. More...

float GetCoefficientFriction () const
 Get coefficient of friction for contact material.

float GetCoefficientRestitution () const
 Get coefficient of restitution for contact material.

float GetYoungModulus () const
 Get Young's modulus of elasticity for contact material.

float GetPoissonRatio () const
 Get Poisson ratio for contact material.

float GetKn () const
 Get normal stiffness coefficient for contact material.

float GetKt () const
 Get tangential stiffness coefficient for contact material.

float GetGn () const
 Get normal viscous damping coefficient for contact material.

float GetGt () const
 Get tangential viscous damping coefficient for contact material.

virtual void SetOutput (bool state)
 Enable/disable output for this subsystem.

bool OutputEnabled () const
 Return the output state for this subsystem.

virtual void ExportComponentList (rapidjson::Document &jsonDocument) const
 Export this subsystem's component list to the specified JSON object. More...

virtual void Output (ChVehicleOutput &database) const
 Output data for this subsystem's component list to the specified database.


Additional Inherited Members

- Static Public Member Functions inherited from chrono::vehicle::ChPart
static ChMatrix33 TransformInertiaMatrix (const ChVector<> &moments, const ChVector<> &products, const ChMatrix33<> &vehicle_rot, const ChMatrix33<> &body_rot)
 Utility function for transforming inertia tensors between centroidal frames. More...

- Protected Member Functions inherited from chrono::vehicle::ChPart
virtual void Create (const rapidjson::Document &d)
 Create a vehicle subsystem from JSON data. More...

- Static Protected Member Functions inherited from chrono::vehicle::ChPart
static void ExportBodyList (rapidjson::Document &jsonDocument, std::vector< std::shared_ptr< ChBody >> bodies)
 Export the list of bodies to the specified JSON document.

static void ExportShaftList (rapidjson::Document &jsonDocument, std::vector< std::shared_ptr< ChShaft >> shafts)
 Export the list of shafts to the specified JSON document.

static void ExportJointList (rapidjson::Document &jsonDocument, std::vector< std::shared_ptr< ChLink >> joints)
 Export the list of joints to the specified JSON document.

static void ExportCouplesList (rapidjson::Document &jsonDocument, std::vector< std::shared_ptr< ChShaftsCouple >> couples)
 Export the list of shaft couples to the specified JSON document.

static void ExportMarkerList (rapidjson::Document &jsonDocument, std::vector< std::shared_ptr< ChMarker >> markers)
 Export the list of markers to the specified JSON document.

static void ExportLinSpringList (rapidjson::Document &jsonDocument, std::vector< std::shared_ptr< ChLinkSpringCB >> springs)
 Export the list of translational springs to the specified JSON document.

static void ExportRotSpringList (rapidjson::Document &jsonDocument, std::vector< std::shared_ptr< ChLinkRotSpringCB >> springs)
 Export the list of rotational springs to the specified JSON document.

static void ExportBodyLoadList (rapidjson::Document &jsonDocument, std::vector< std::shared_ptr< ChLoadBodyBody >> loads)
 Export the list of body-body loads to the specified JSON document.

- Protected Attributes inherited from chrono::vehicle::hmmwv::HMMWV_Wheel
std::shared_ptr< ChTriangleMeshShapem_trimesh_shape

- Protected Attributes inherited from chrono::vehicle::ChWheel
std::shared_ptr< ChBodym_spindle
 associated suspension spindle body

std::shared_ptr< ChTirem_tire
 attached tire subsystem

VehicleSide m_side
 wheel mounted on left/right side

double m_offset
 offset from spindle center

std::shared_ptr< ChCylinderShapem_cyl_shape
 visualization cylinder asset

- Protected Attributes inherited from chrono::vehicle::ChPart
std::string m_name
 subsystem name

bool m_output
 specifies whether or not output is generated for this subsystem

float m_friction
 contact coefficient of friction

float m_restitution
 contact coefficient of restitution

float m_young_modulus
 contact material Young modulus

float m_poisson_ratio
 contact material Poisson ratio

float m_kn
 normal contact stiffness

float m_gn
 normal contact damping

float m_kt
 tangential contact stiffness

float m_gt
 tangential contact damping

- Static Protected Attributes inherited from chrono::vehicle::hmmwv::HMMWV_Wheel
static const double m_radius = 0.268

static const double m_width = 0.22

static const double m_mass = 18.8

static const ChVector m_inertia
